Drawing cable tie mount ABMS

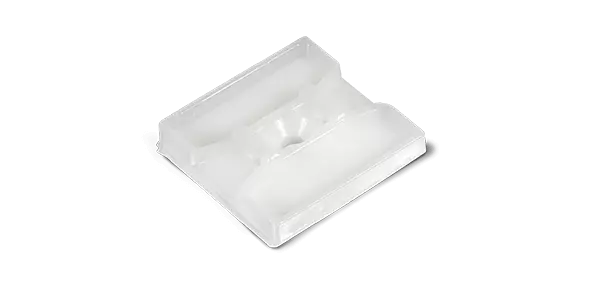

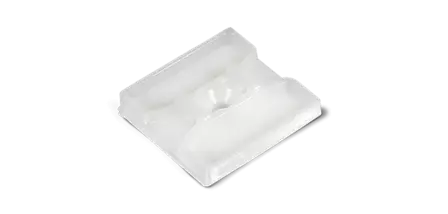

Cable tie mount ABMS

Cable tie mount ABMS

Mounting base for cable ties with a width of approx. 5 mm in two-way design. Sockets available in adhesive or screw mounting.

Description
Close
Product description: Cable tie mount ABMS

Product variants

Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400146
ABMS-A-D KLEBEPLATTE
Assembly type with adhesive tape
Type 2 ways
Material polyamide 6.6
Fire protection class UL 94 V-2
Temperature range -29°C - +49°C
Colour natural
Ø Mounting hole in mm M3
Widths in mm 28,7
Height in mm 4,32
Depth in mm 28,7
For cable ties with width 5,2
Max. static load in g 272

Price / availability enquiry
