Drawing cable clamp ESS303
Cable clamp ESS003

Plastic cable holder ESS003

Cable holder with spring function for bundling cables from Ø2 up to Ø8 mm

Description
Close

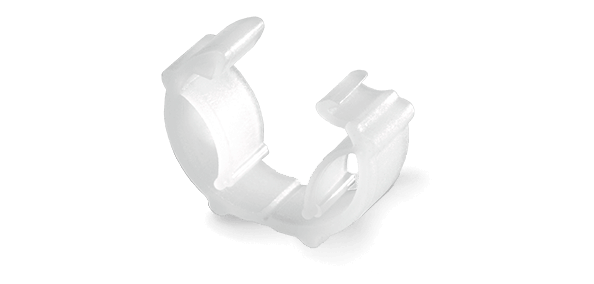

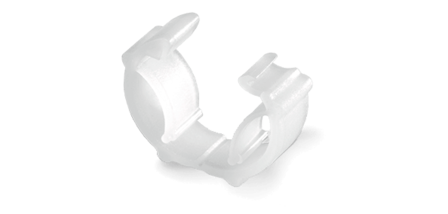

Product description: Plastic cable holder ESS003

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407827
ESS 003
407828
ESS 005
407829
ESS 007
Assembly type 17 17 17
Material nylon 6 nylon 6 nylon 6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural
Ø Bundle/ Cable in mm 2,0 - 4,0 3,5 - 5,5 5,5 - 8,8
Blocking mechanism locking locking locking
Type of cable round cable round cable round cable
Component width in mm 6,0 6,0 6,0
Component length in mm 10,6 15,1 18,5
