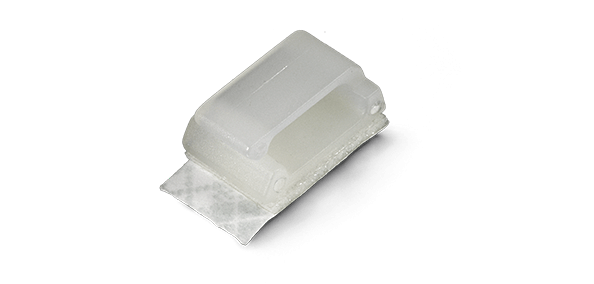

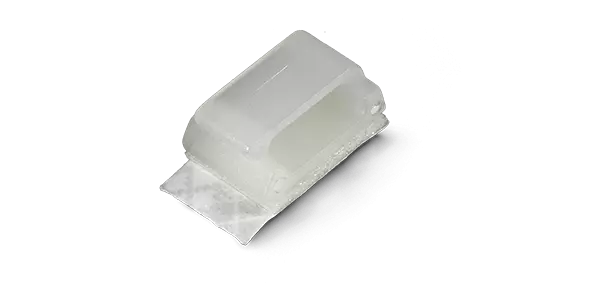

Plastic cable clamp LPR670

Miniature cable clamp for adhesive film mounting for 8.4 x 2.8 mm cable bundles

Product variants

2 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry
409181
LPR 6700-A MINIATUR-LEITUNGSHALTER
433236
LPR 6701-A MINIATUR-LEITUNGSHALTER
Assembly type with adhesive tape with adhesive tape
Material nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C
Colour natural natural
Height in mm 6,4 6,4
Height in clip in mm 2,8 2,8
Blocking mechanism clamping clamping
Type of cable ribbon cable ribbon cable
Component width in mm 12,7 12,7
Component length in mm 12,7 9,5
Max. cable width in mm 8,4 8,4
