Drawing cable clamp ESS107
Cable clamp ESS107

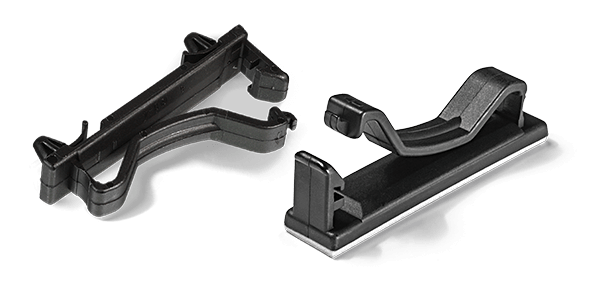

Flat cable clip ESS107

Flat cable clip in snap-in or adhesive film design. Available in two sizes (79.5 or 44.5 mm) for fixing flat cables. Locking mechanism is releasable.

Description
Close
Product description: Flat cable clip ESS107

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403867
ESS 1070-B4S FLACHBANDKABELHALTER
403868
ESS 1070-B4T FLACHBANDKABELHALTER
403869
ESS 1071-B3S FLACHBANDKABELHALTER
403870
ESS 1071-B3T FLACHBANDKABELHALTER
Assembly type plug in mounting with adhesive tape plug in mounting with adhesive tape
Type 1B 2B Type 1 Type 2
Material nylon 6 nylon 6 nylon 6 nylon 6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour black black black black
Ø Mounting hole (B "bottom") in mm 4,8 - 4,8 -
Panel thickness in mm 0,8 - 2,0 - 0,8 - 2,0 -
Height in mm 15 15 15 15
Blocking mechanism locking locking locking locking
Type of cable ribbon cable ribbon cable ribbon cable ribbon cable
Component width in mm 12,0 12,0 12,0 12,0
Component length in mm 52,5 52,5 88,0 88,0
Length holder in mm 44,5 44,5 79,5 79,5
Width holder in mm 8,0 8,0 8,0 8,0
Max. cable width in mm 44,0 44,0 77,0 77,0
