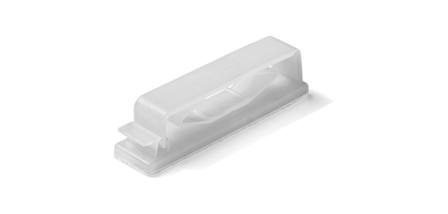

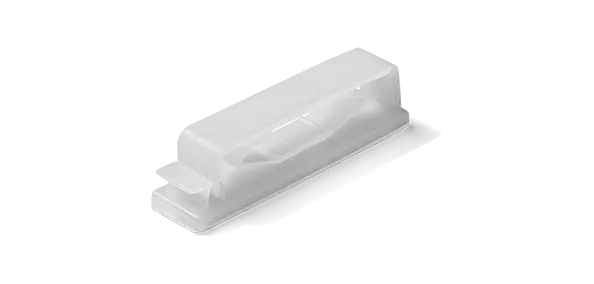

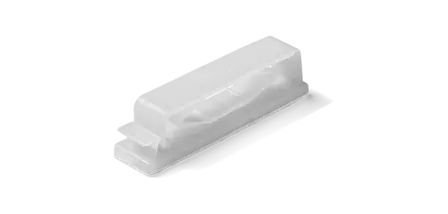

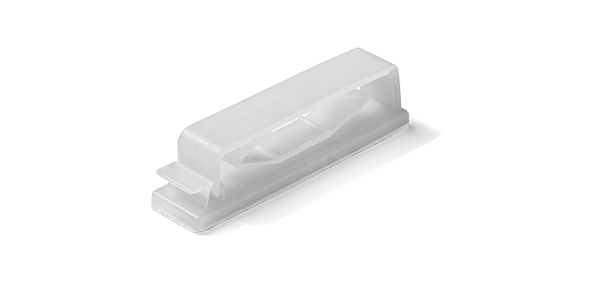

Cable clip LPR107

Flat cable holder with internal safety clamp function for a secure fit of the cables with variants for 30, 40 or 50 pins

Product variants

Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
411661
LPR 1071 FLACHKABELHALTER
Assembly type with adhesive tape
Material nylon 66
Fire protection class UL 94 V-2
Colour natural
Height in mm 16,3
Height in clip in mm 11,3
Blocking mechanism locking
Type of cable ribbon cable
Component width in mm 15,7
Component length in mm 67
Width holder in mm 12
Max. cable width in mm 54
