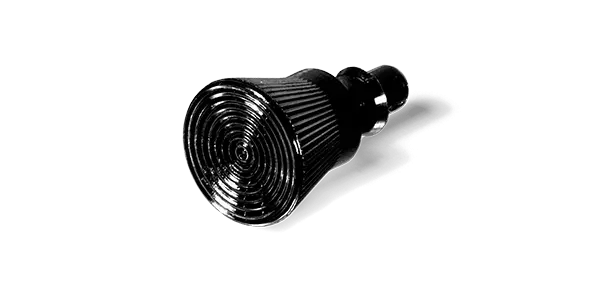

Plastic rivet PNKT
Rivet with knob diameter 10 or 12 mm and 8 mm height. For hole sizes 3.1 up to 4.2 mm and panel thickness from 1 to 8.5 mm. Releasable rivet.
| 402786 PNK T 3035 SCHWARZ | 402787 PNK T 3045 SCHWARZ | 402788 PNK T 3055 SCHWARZ | 402789 PNK T 3065 SCHWARZ | 402790 PNK T 3080 SCHWARZ | 402791 PNK T 3545 SCHWARZ | 402792 PNK T 3555 SCHWARZ | 402793 PNK T 3570 SCHWARZ | 402794 PNK T 4070 SCHWARZ | 402795 PNK T 4080 SCHWARZ | 402796 PNK T 4100 SCHWARZ | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Temperature range | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C | -40°C - +115°C |
| Colour | black | black | black | black | black | black | black | black | black | black | black |
| Ø Rivet head in mm | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 |
| Height rivet head in mm | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Height hull in mm | 3,5 | 4,5 | 5,5 | 6,5 | 8 | 4,5 | 5,5 | 7 | 7 | 8 | 10 |
| Rivet diameter in mm | 3 | 3 | 3 | 3 | 3 | 3,5 | 3,5 | 3,5 | 4 | 4 | 4 |
| Rivet length in mm | 6,6 | 6,6 | 6,6 | 9 | 9 | 6,6 | 6,6 | 9 | 11,2 | 11,2 | 11,2 |
| Ø Mounting hole in mm | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,6 - 3,7 | 3,6 - 3,7 | 3,6 - 3,7 | 4,1 - 4,2 | 4,1 - 4,2 | 4,1 - 4,2 |
| Model | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) | Rivet (with piston) |
