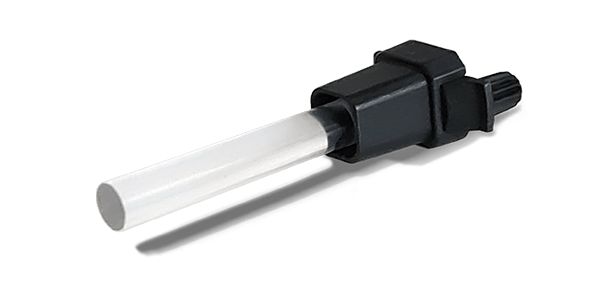

Rigid light pipe EPV3

ZeroLightBleed™ light pipe with adapter for PCB mounting. Transparent lens Ø3 mm in dome or flat face design. Light pipe lengths from 8.9 to 50.8 mm

Variantes du produit

4 Variante (s) trouvée (s)
Vous n'avez pas trouvé la variante de produit souhaitée dans la liste? Pourtant elle est dans le dessin! Cliquez ici: Demande de prix
433150
EPV3-12,7-F LICHTLEITER
433151
EPV3-25,4-F LICHTLEITER
433152
EPV3-31,8-F LICHTLEITER
433164
EPV3-15,2-F LICHTLEITER
Material polycarbonate polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent transparent
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe 1 light pipe
Face/ Lens profil round and flat round and flat round and flat round and flat
Ø optical fiber in mm 2,9 2,9 2,9 2,9
Length x in mm 12,7 25,4 31,8 15,2
Assembly type board mount board mount board mount board mount
