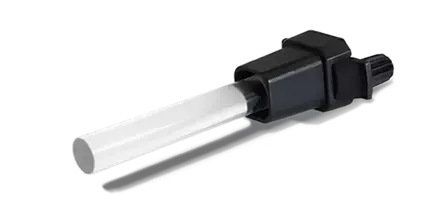

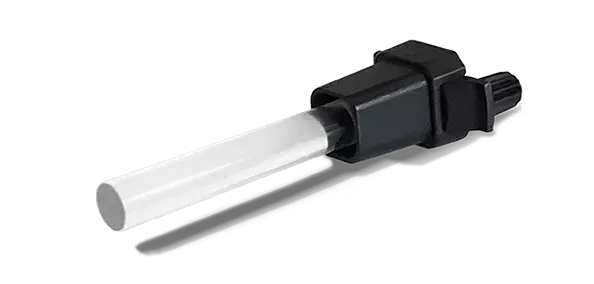

Rigid light pipe EPV3
ZeroLightBleed™ light pipe with adapter for PCB mounting. Transparent lens Ø3 mm in dome or flat face design. Light pipe lengths from 8.9 to 50.8 mm
| 433150 EPV3 12,7-F | 433151 EPV3 25,4-F | 433152 EPV3 31,8-F | 433164 EPV3 15,2-F | |
|---|---|---|---|---|
| Material | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
| Colour | transparent | transparent | transparent | transparent |
| Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
| Face/ Lens profil | round and flat | round and flat | round and flat | round and flat |
| Ø optical fiber in mm | 2,9 | 2,9 | 2,9 | 2,9 |
| Length x in mm | 12,7 | 25,4 | 31,8 | 15,2 |
| Assembly type | board mount | board mount | board mount | board mount |
