Rigid light pipe EL93

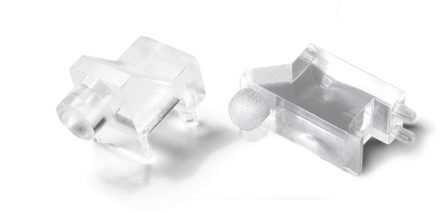

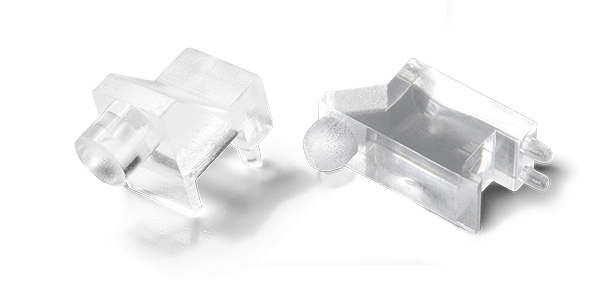

Light pipe for direct PCB plug-in mounting. Transparent lens Ø3 mm with round or flat face. Heights from panel to light diversion from 3.8 up to 17.8 mm
Variantes du produit
405627 EL 93 R X10,2 Y2,5 LICHTLEITER | 405831 EL 93 R X6,4 Y2,5 LICHTLEITER | 406082 EL 93 F X3,8 Y2,5 LICHTLEITER | 406361 EL 93 R X8,9 Y2,5 LICHTLEITER | 406611 EL 93 R X3,8 Y2,5 LICHTLEITER | 406682 EL 93 F X5,0 Y2,5 LICHTLEITER | 406683 EL 93 R X5,0 Y2,5 LICHTLEITER | 407051 EL 93 F X13,9 Y2,5 LICHTLEITER | 407492 EL 93 F X10,2 Y2,5 LICHTLEITER | 408339 EL 93 R X7,6 Y2,5 LICHTLEITER | 409132 EL 93 F X3,8 Y6,35 LICHTLEITER | 409189 EL 93 F X16,5 Y2,5 LICHTLEITER | 409190 EL 93 F X17,8 Y2,5 LICHTLEITER | 409662 EL 93 R X13,9 Y2,5 LICHTLEITER | 409663 EL 93 R X16,5 Y2,5 LICHTLEITER | 409725 EL 93 R X17,8 Y2,5 LICHTLEITER | 409726 EL 93 F X6,4 Y2,5 LICHTLEITER | 409727 EL 93 F X7,6 Y2,5 LICHTLEITER | 409728 EL 93 F X8,9 Y2,5 LICHTLEITER | 409729 EL 93 F X11,4 Y2,5 LICHTLEITER | 409730 EL 93 R X11,4 Y2,5 LICHTLEITER | 409731 EL 93 F X12,7 Y2,5 LICHTLEITER | 409732 EL 93 R X12,7 Y2,5 LICHTLEITER | 409733 EL 93 F X15,2 Y2,5 LICHTLEITER | 409734 EL 93 R X15,2 Y2,5 LICHTLEITER | 409844 EL 93 F X5,0 Y3,8 LICHTLEITER | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
Colour | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent |
Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
Ø Face / Lens in mm | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Face/ Lens profil | round and curved | round and curved | round and flat | round and curved | round and curved | round and flat | round and curved | round and flat | round and flat | round and curved | round and flat | round and flat | round and flat | round and curved | round and curved | round and curved | round and flat | round and flat | round and flat | round and flat | round and curved | round and flat | round and curved | round and flat | round and curved | round and flat |
LED included | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
Central line (height, X) in mm | 10,2 | 6,35 | 3,8 | 8,9 | 3,8 | 5,1 | 5,1 | 14 | 10,2 | 7,6 | 3,8 | 16,5 | 17,8 | 14 | 16,5 | 17,8 | 6,35 | 7,6 | 8,9 | 11,4 | 11,4 | 12,7 | 12,7 | 15,2 | 15,2 | 5,1 |
Assembly type | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount |
