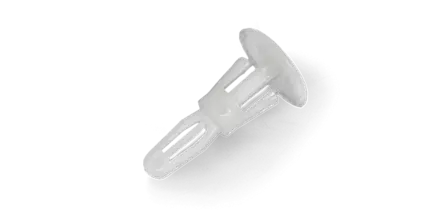

PCB spacer LPR86M

Spacer with rivet on one side and snap on the other. For spacer lengths from 6.4 to 15.9 mm.


401045
LPR 8602-MINI
401046
LPR 8603-MINI
401047
LPR 8604-MINI
401048
LPR 8605-MINI
406509
LPR 8606-MINI
Distance height in mm 6,4 9,5 12,7 15,9 14,3
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Blind hole cover Blind hole cover Blind hole cover Blind hole cover Blind hole cover
Outer Diameter body in mm 4,4 4,4 4,4 4,4 4,4
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,75 4,75 4,75 4,75 4,75
Overlap (B "bottom") in mm 1,5 1,5 1,5 1,5 1,5
Ø Mounting hole (A "top") in mm 3,18 3,18 3,18 3,18 3,18
Overlap (A "top") in mm 8,7 8,7 8,7 8,7 8,7
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 1,5 - 1,6 1,5 - 1,6 1,5 - 1,6 1,5 - 1,6 1,5 - 1,6
