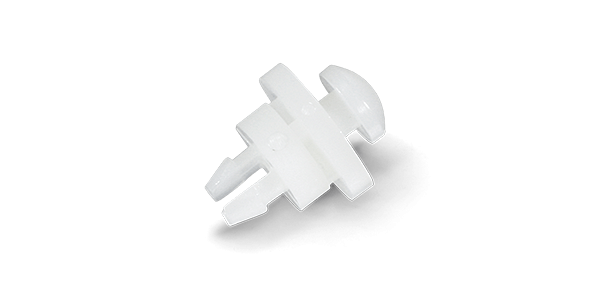

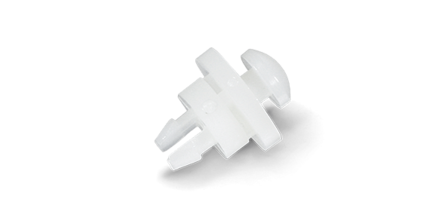

PCB spacer LPR84

Spacer for key slot holes on one side and snap-on mounting on the other. For spacing lengths from 4.8 to 25.4 mm.

Variantes du produit

6 Variante (s) trouvée (s)
Vous n'avez pas trouvé la variante de produit souhaitée dans la liste? Pourtant elle est dans le dessin! Cliquez ici: Demande de prix
402968
LPR 8459
403002
LPR 8453
403342
LPR 8452
403343
LPR 8455
403344
LPR 8457
403347
LPR 8462
Distance height in mm 15,9 6,4 4,8 9,5 12,7 25,4
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Mounting slot Mounting slot Mounting slot Mounting slot Mounting slot Mounting slot
Outer Diameter body in mm 7,1 7,1 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Overlap (B "bottom") in mm 2,4 2,4 2,4 2,4 2,4 2,4
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 4,0 4,0 4,0 4,0 4,0 4,0
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 1,57 1,57 1,57 1,57 1,57 1,57
