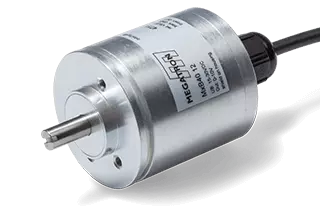

Hall-Effect Rotary Encoder MAB40

Completely sealed encoder with different serial interfaces and ball bearings

Product is no longer available. Successor product HTx36

Click here for series HTx36

Spécifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution Absolute 10 bit, Absolute 12 bit, Absolute 14 bit
Output signal SSI, SPI, SER
Protection class Up to IP67
Mounting Servo flange, Threaded holes
Description
Absolute Encoder MAB40 Serial microcontroller interface (SER) ... Plus
Description
Fermer
Description du produit: Hall-Effect Rotary Encoder MAB40

Absolute Encoder MAB40

  • Serial microcontroller interface (SER)
  • Synchronous serial interface (SSI)
  • Serial peripheral interface (SPI)
  • Redundant outputs
  • IP67 protection class
  • Electrical angle 360°
  • Resolution: 10 bit, 12 bit or 14 bit
  • Supply voltage: 3.3 V, 5 V, 15…30 V
  • Ø 40 mm housing with servo mount flange
  • Highest lifespan due to 2 ball bearings
