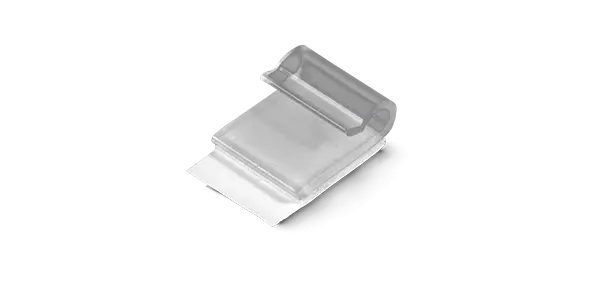

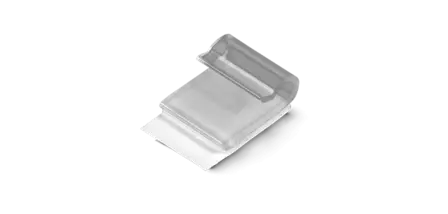

Plastic cable clamp LPR671

Cable clamp with adhesive film mounting. For holding cables with diameters from 3.2 up to 9.5 mm. The clip offers a secure hold and enables easy exchange.

LPR 6710
LPR 6711
Assembly type with adhesive tape with adhesive tape
Material PVC PVC
Fire protection class UL 94 V-0 UL 94 V-0
Colour natural natural
Material adhesive film acrylic based acrylic based
Height in mm 6 8,3
Ø Bundle/ Cable in mm 3,2 4,8
Blocking mechanism clamping clamping
Type of cable round cable round cable
Component width in mm 9,5 11,1
Component length in mm 11,1 15,9
