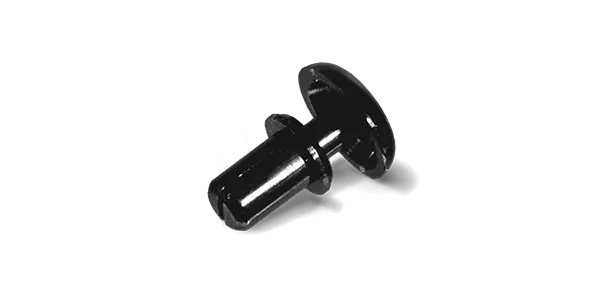

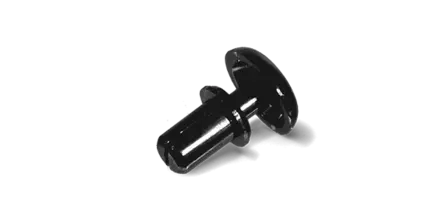

Plastic rivet PNKP
Temperature resistant (+150° C) expanding rivet for hole sizes 3.1 or 4.1 mm. Cover holes in the panel Ø6.4 or Ø7 mm, for panel thickness from 1.5 up to 4.5 mm.
| 402765 PNK P 3045B | 402766 PNK P 3055B | 402767 PNK P 4065B | |
|---|---|---|---|
| Material | polysulfone | polysulfone | polysulfone |
| Fire protection class | UL 94 HB | UL 94 HB | UL 94 HB |
| Temperature range | -100 - 140 °C | -100 - 140 °C | -100 - 140 °C |
| Colour | black | black | black |
| Ø Rivet head in mm | 6,4 | 6,4 | 7 |
| Height rivet head in mm | 1,6 | 1,6 | 2 |
| Height hull in mm | 4,5 | 5,5 | 6,6 |
| Rivet diameter in mm | 3,1 | 3,1 | 4,1 |
| Shaft length in mm | 6,1 | 6,1 | 11 |
| Ø Mounting hole in mm | 3,1 | 3,1 | 4,1 |
| Panel thickness in mm | 1,5 - 2,5 | 2,5 - 3,5 | 3,5 - 4,5 |
| Model | Expanding rivet | Expanding rivet | Expanding rivet |
