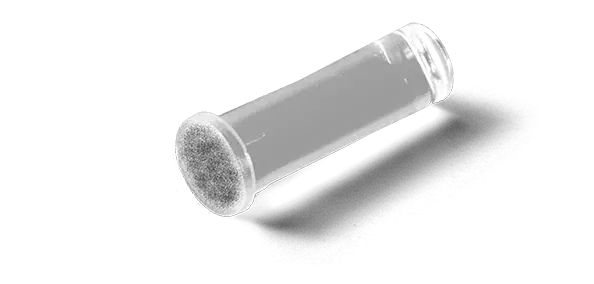

Rigid light pipe EPL7
Light pipe for plug-in mounting from the front of the panel. Diffuse lens Ø3.1 mm in dome face design. Light pipe lengths from 2.5 to 3.2 mm
| 433131 EPL7 2,5 | 433132 EPL7 3,2 | 433133 EPL7 3,0 | |
|---|---|---|---|
| Material | polycarbonate | polycarbonate | polycarbonate |
| Colour | smoke diffused | smoke diffused | smoke diffused |
| Ø Outer in mm | 3,1 | 3,1 | 3,1 |
| Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe |
| Ø Face / Lens in mm | 3 | 3,0 | 3,0 |
| Face/ Lens profil | round and curved | round and curved | round and curved |
| LED included | No | No | No |
| Ø optical fiber in mm | 2,8 | 2,8 | 2,8 |
| Length x in mm | 2,5 | 3,2 | 3,0 |
| Assembly type | panel press-fit front | panel press-fit front | panel press-fit front |
