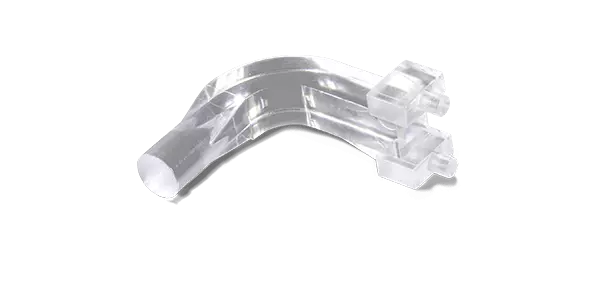

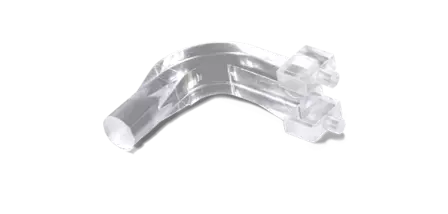

Rigid light pipe EL95R
Light pipe for PCB plug-in mounting. Transparent lens Ø5,8 mm in dome face design. Height from panel to light diversion 22,5 mm and length from PCB to panel 22,3 mm
| 406807 EL 95R-25,4 | |
|---|---|
| Material | polycarbonate |
| Colour | transparent |
| Number of optical fibers | 1 light pipe |
| Ø Face / Lens in mm | 5,8 |
| Face/ Lens profil | round and curved |
| LED included | No |
| Assembly type | board mount |
