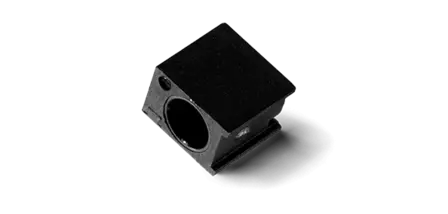

LED holder ELBLR51
Single LED holder for Ø5 or Ø5.2 mm LED for mounting these holders in a row or alone on the circuit board
403967 ELB LR-51C-RM | 405186 ELB LR-51E | 406148 ELB LR-51RL | 406149 ELB LR-51RR | |
---|---|---|---|---|
Type | RM | E | RL | RR |
Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | - |
Colour | black | black | black | black |
Widths in mm | 6,4 | 6,4 | 6,4 | 6,4 |
Ø Inner in mm | 5,2 | 5,0 | 5,0 | 5,0 |
Height "H" in mm | 6,1 | 6,1 | 6,1 | 6,1 |
Depth in mm | 8,9 | 8,9 | 8,9 | 8,9 |
Number of employed LEDs | 1 | 1 | 1 | 1 |
Holder mountable at holder | Yes | No | Yes | Yes |
LED Size | 5 mm | 5 mm | 5 mm | 5 mm |
