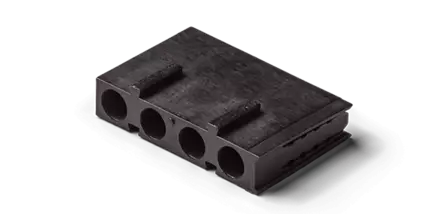

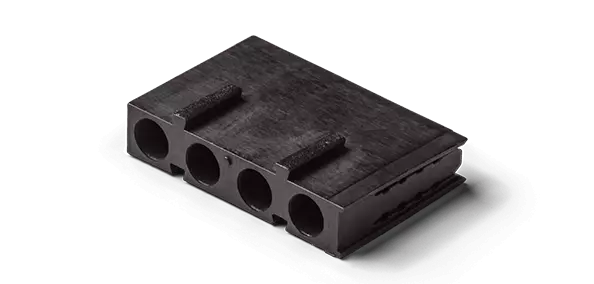

LED holder ELBLR34
Four-fold LED holder for Ø3.3 LED for mounting these holders in a row or alone on the circuit board
| 405936 ELB LR-34E | 406155 ELB LR-34RL | 406156 ELB LR-34RM | 406157 ELB LR-34RR | |
|---|---|---|---|---|
| Type | E | RL | RM | RR |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Colour | black | black | black | black |
| Widths in mm | 4,3 | 4,3 | 4,3 | 4,3 |
| Ø Inner in mm | 3,3 | 3,3 | 3,3 | 3,3 |
| Height "H" in mm | 21,3 | 21,3 | 21,3 | 21,3 |
| Depth in mm | 14,2 | 14,2 | 14,2 | 14,2 |
| Number of employed LEDs | 4 | 4 | 4 | 4 |
| Holder mountable at holder | No | Yes | Yes | Yes |
| LED Size | 3 mm | 3 mm | 3 mm | 3 mm |
