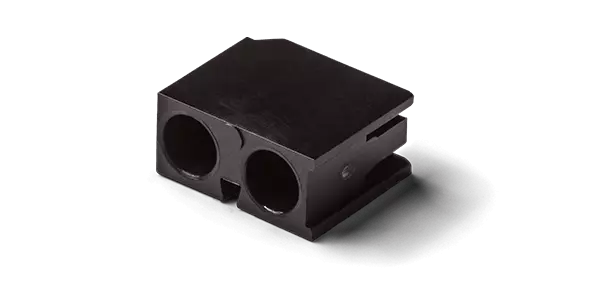

LED holder ELBLR32
Double LED holder for Ø3.4 or Ø3.8 mm LED for mounting these holders in a row or alone on the circuit board
| 403966 ELB LR-32RM | 405336 ELB LR-32E | 406150 ELB LR-32RL | 406151 ELB LR-32RR | |
|---|---|---|---|---|
| Type | RM | E | RL | RR |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Colour | black | black | black | black |
| Widths in mm | 4,6 | 4,6 | 4,6 | 4,6 |
| Ø Inner in mm | 3,3 | 3,3 | 3,3 | 3,3 |
| Height "H" in mm | 9,7 | 9,7 | 9,7 | 9,7 |
| Depth in mm | 8,1 | 8,1 | 8,1 | 8,1 |
| Number of employed LEDs | 2 | 2 | 2 | 2 |
| Holder mountable at holder | Yes | No | Yes | Yes |
| LED Size | 3 mm | 3 mm | 3 mm | 3 mm |
