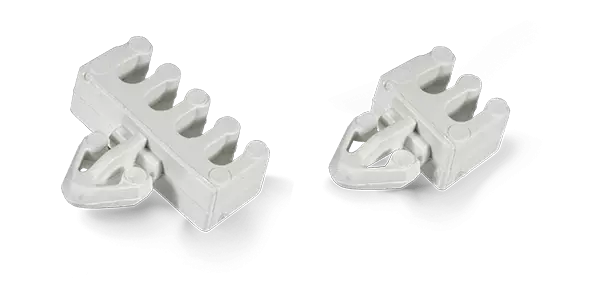

Miniature cable clamp KKKV1
Cable clamp for snap-in mounting for 2 or 4 strands / cables with max. Ø2.2 / min. Ø1.5 mm
| 402488 KKK V1 | 406877 KKK V1-S | |
|---|---|---|
| Assembly type | plug in mounting | plug in mounting |
| Type | Type 1 | Type 2 |
| Material | nylon 66, fibre-glass reinforced | nylon 66, fibre-glass reinforced |
| Fire protection class | UL 94 HB | UL 94 HB |
| Colour | white | white |
| Ø Mounting hole (B "bottom") in mm | 5 | 5 |
| Panel thickness in mm | 1,5 | 1,5 |
| Height in mm | 13,6 | 12 |
| Ø Bundle/ Cable in mm | 2,2 | 2,2 |
| Height in clip in mm | 4,5 | 4,5 |
| Blocking mechanism | clamping | clamping |
| Ø Borehole in mm | 2,2 | - |
| Type of cable | round cable | round cable |
| Component width in mm | 5 | 5 |
| Component length in mm | 15 | 8,4 |
